2 Core 0.5mm²-4.5mm² 11-42Amps Flat Twin Red/Black 12V Wire - from 5 to 100metres
Thin Wall low voltage multicore wiring cables suitable for use in the automotive, marine and allied industries. Resistant to petrol, diesel, lubricating oils and diluted acids. This is proper automotive extension cable.
Reduced "Thin" Insulation extra low voltage wiring cable for Automotive and Marine applications.

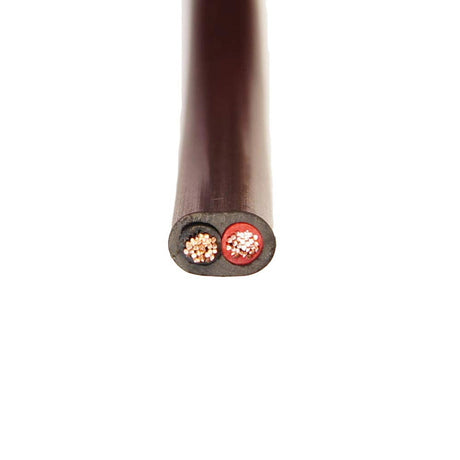

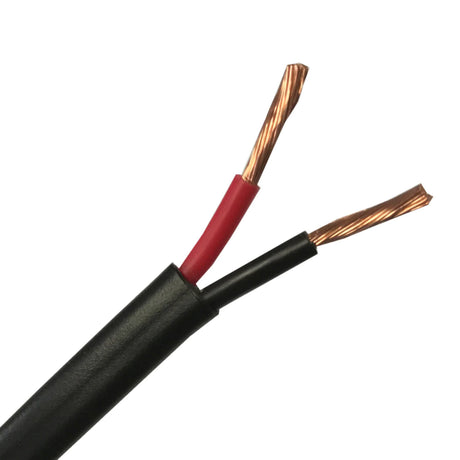

Black outer sheath with black & red inner cores as standard. Reduced insulation gives considerable space savings and increased current ratings.
Suitable for use at temperatures up to 105°C.
Specification:

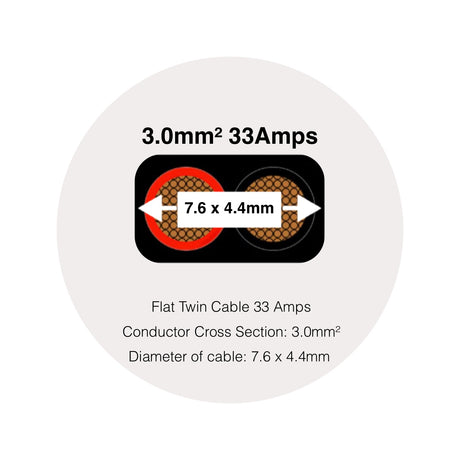

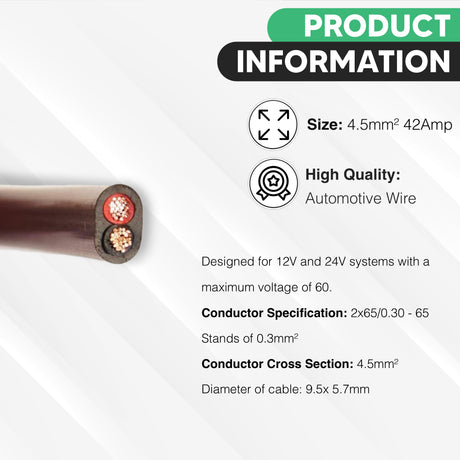

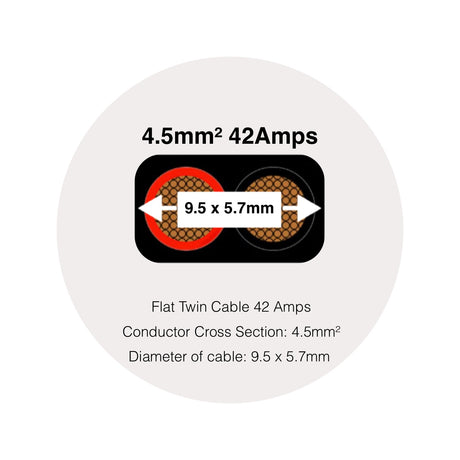

Cross Section: 0.5mm, 0.75mm, 1.0mm, 1.5mm, 2.0mm, 2.5mm 3.0mm 4.5mm ***
Current Rating(amps) 11-42 Amps
***Please note that the sizes quoted (denoted clearly by ² symbol) refer to the area of copper and not the diameter.
Insulation Properties:
Calcium Zinc based insulation compound to ISO6722-2011 Class B
Thermal Stability 200 mins @ 200°C
Sheath Properties
Easy tear PVC sheathing to BS7655 Type 6
COPPER STRAND PROPERTIES
