High temperature thin wall low voltage cables suitable for use in the automotive, marine and allied industries.
These cables are specified as standard by manufacturers throughout Europe due to their high performance characteristics.
Manufactured in accordance with ISO6722-1:2011 (Class B) 105°C. Suitable for 12v and 24v systems (Maximum voltage 60v).

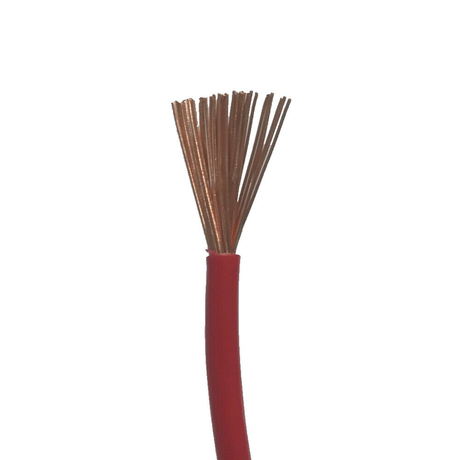

Plain Copper Conductors - PVC Insulated. Suitable for use at temperatures from -40°C to 105°C.
Reduced insulation gives considerable savings in weight and volume especially when used in large wiring harnesses.
Good resistance to petrol, diesel, lubricating oils and diluted acids.
Hard grade PVC insulation offers good resistance to abrasion and cut through.

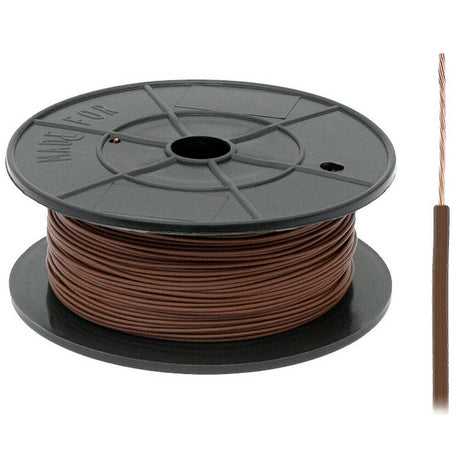

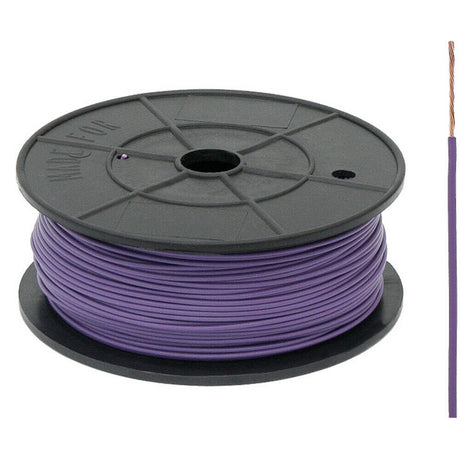

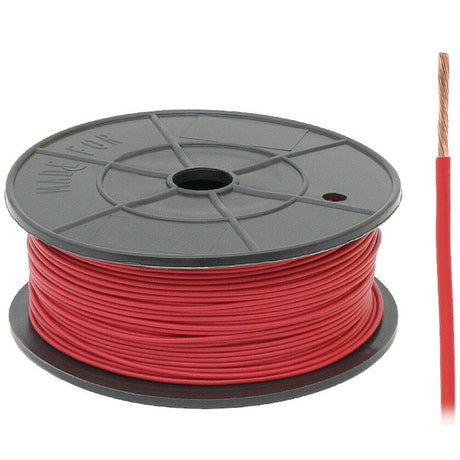

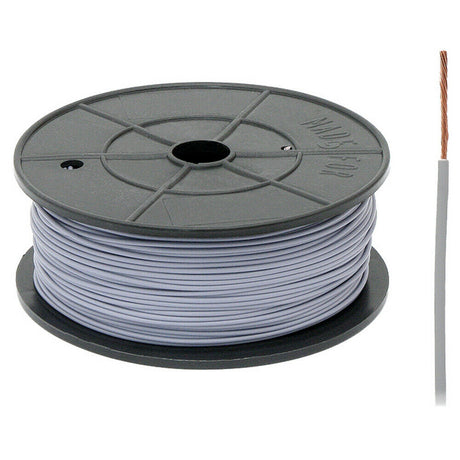

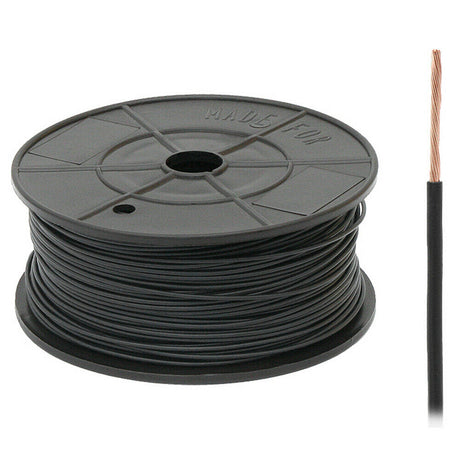

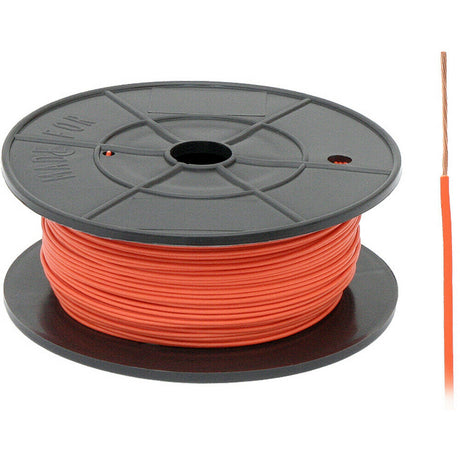

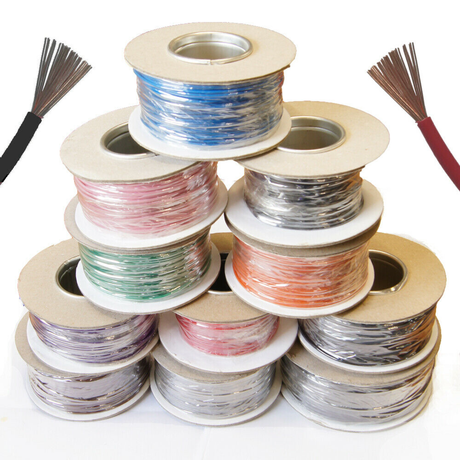

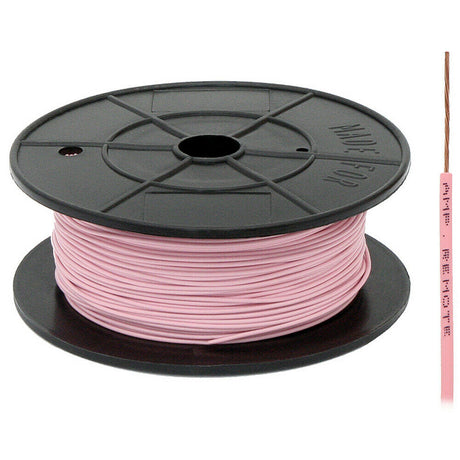

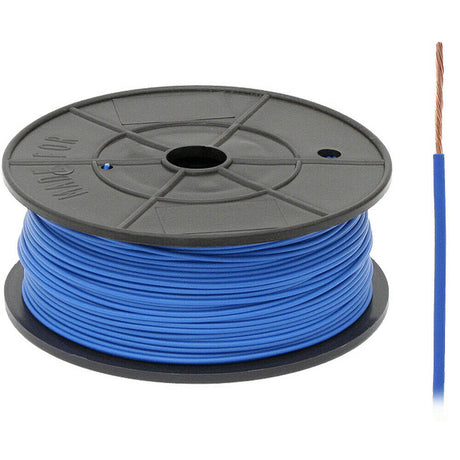

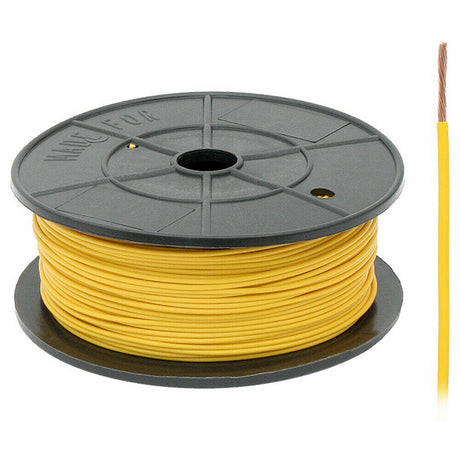

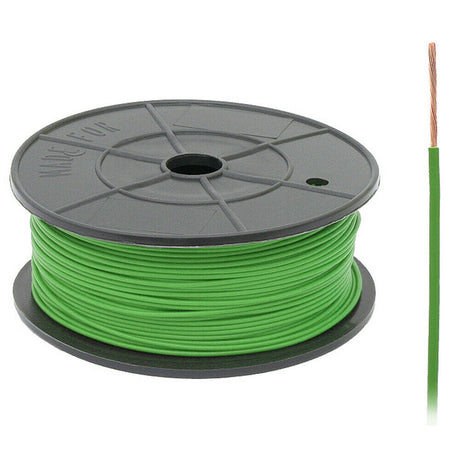

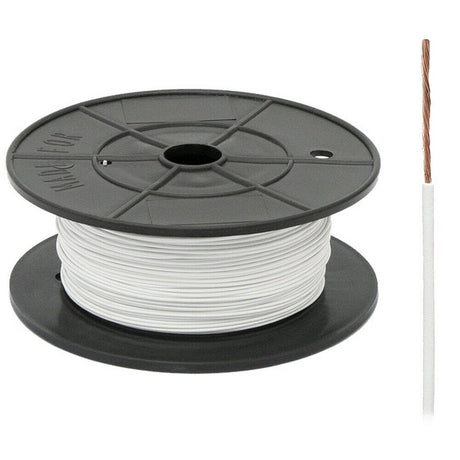

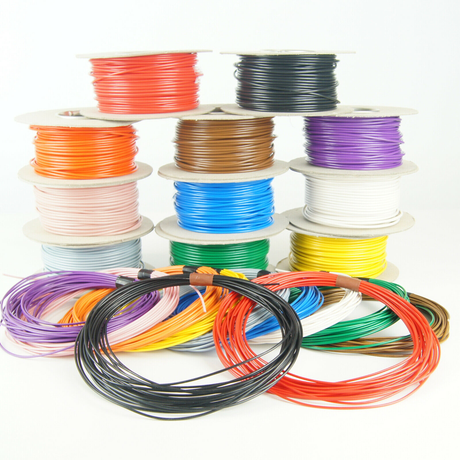

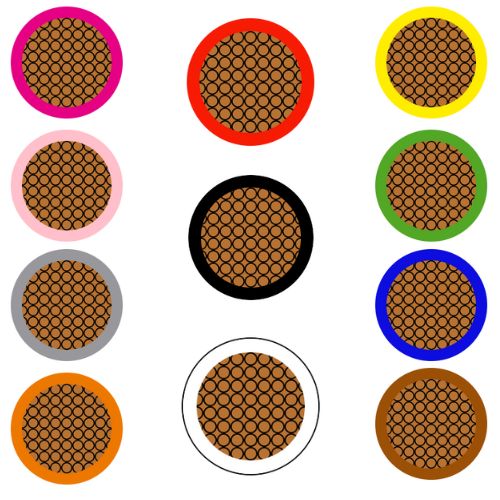

11 Colours Avaliable: Black, Red, Blue, Green, Purple, Orange, Grey, White, Pink, Yellow, Brown
Cables Available Ampers/Cross Section Area***
11 Amps / 0.5mm²
14 Amps / 0.75mm²
16.5 Amps / 1.0mm²
25 Amps / 2.0mm²
33 Amps / 3mm²
42 Amps / 4.5mm²
50 Amps / 6.0mm²
63 Amps / 8.5mm²
70 Amps / 10mm²
***Please note that the sizes quoted (denoted clearly by ² symbol) refer to the area of copper and not the diameter.
