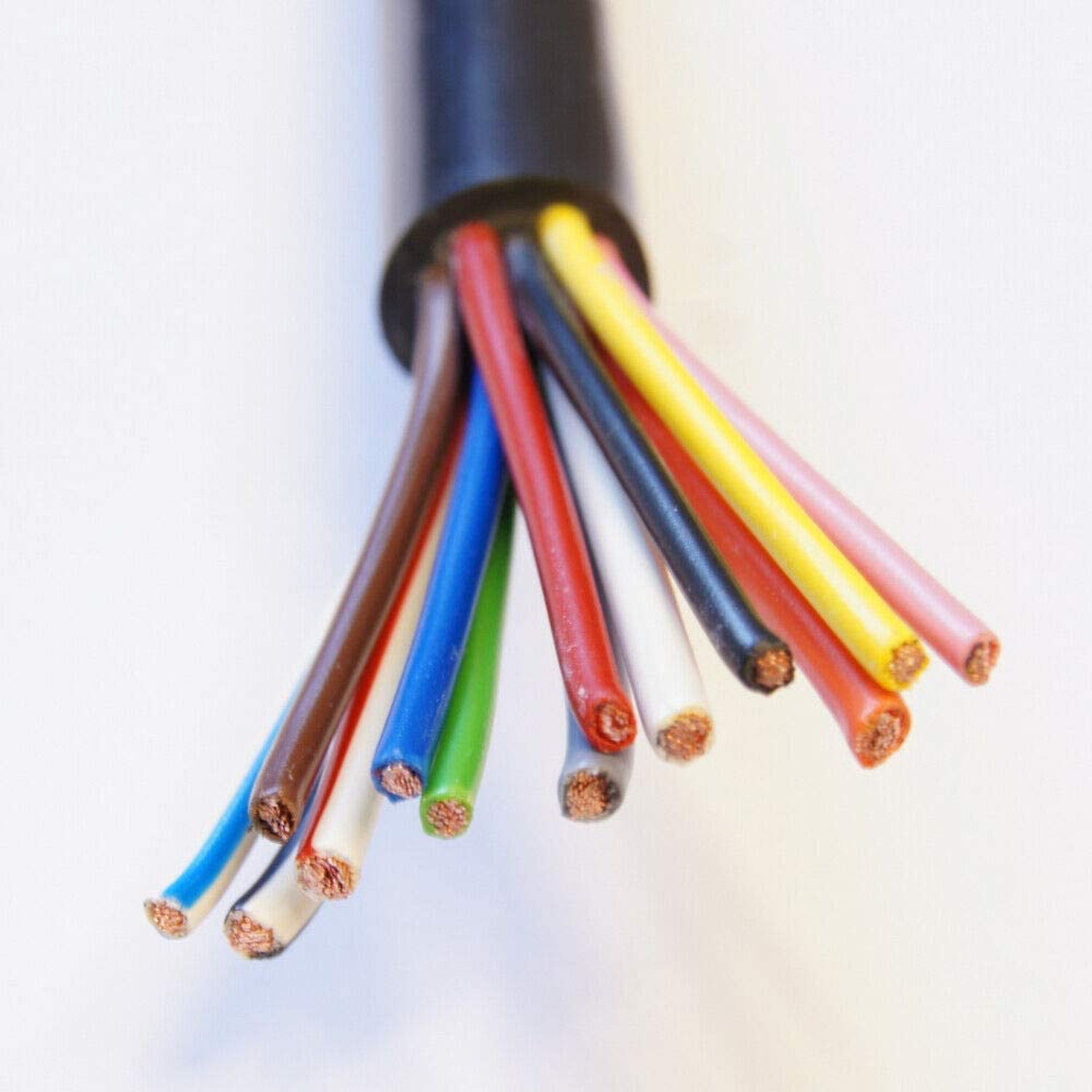

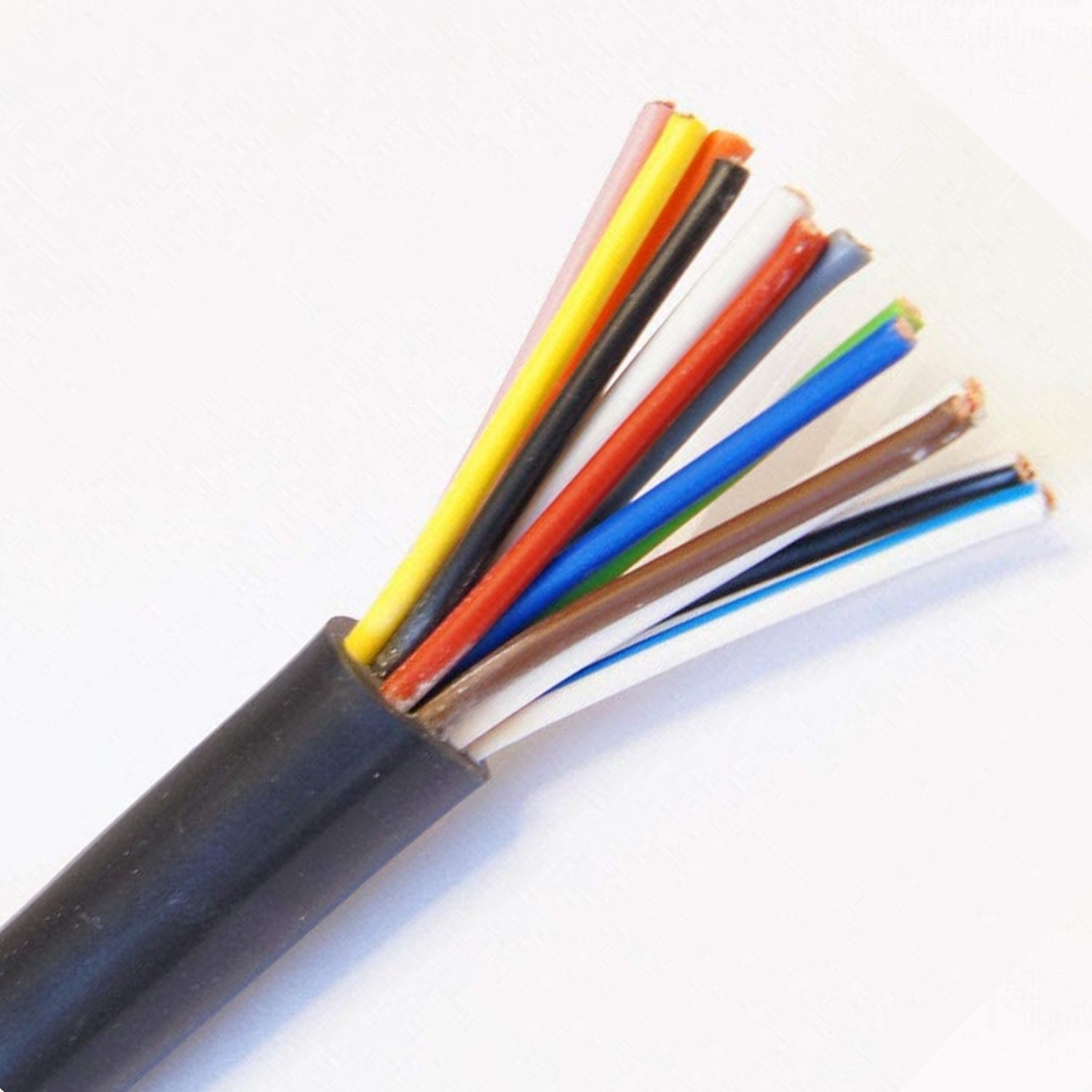

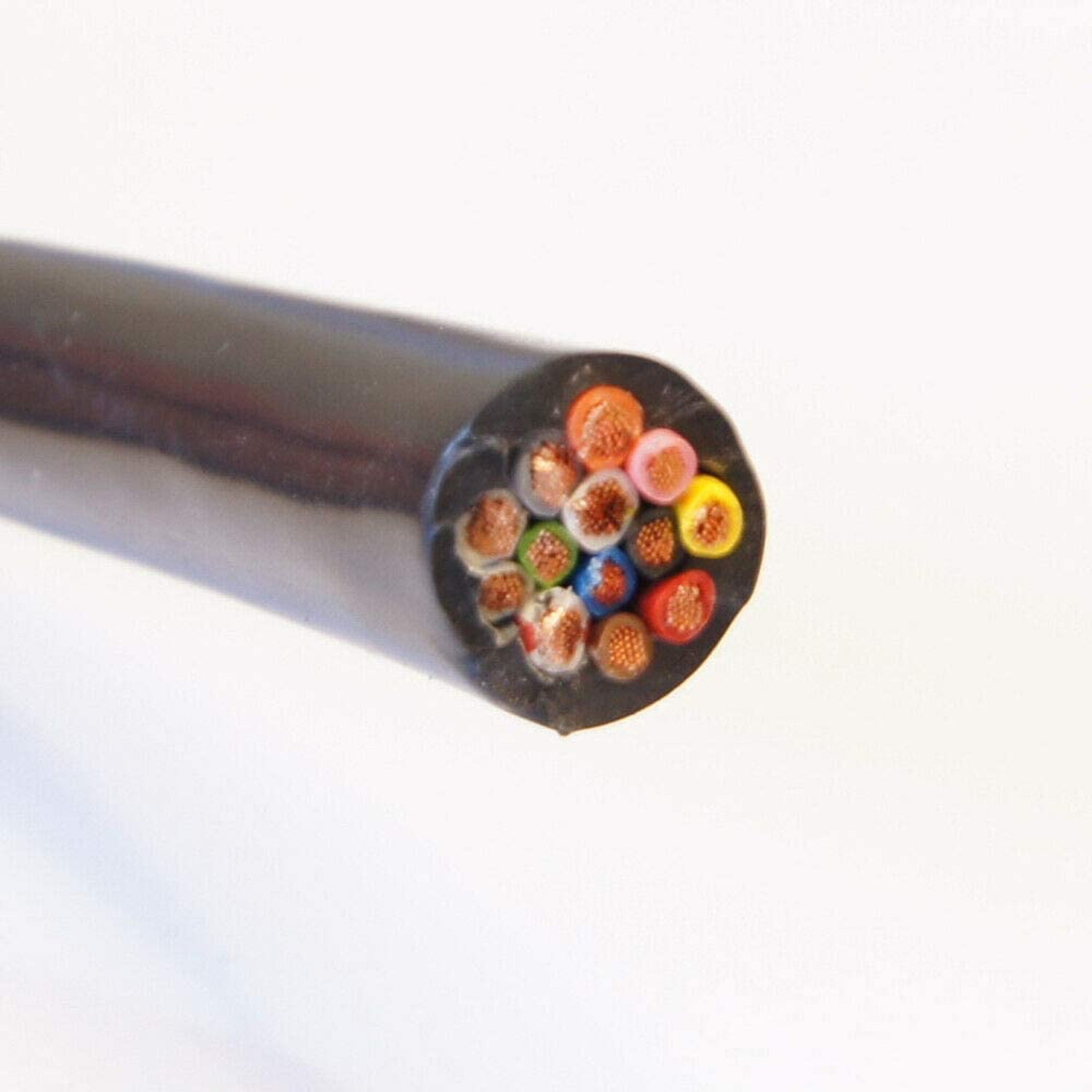

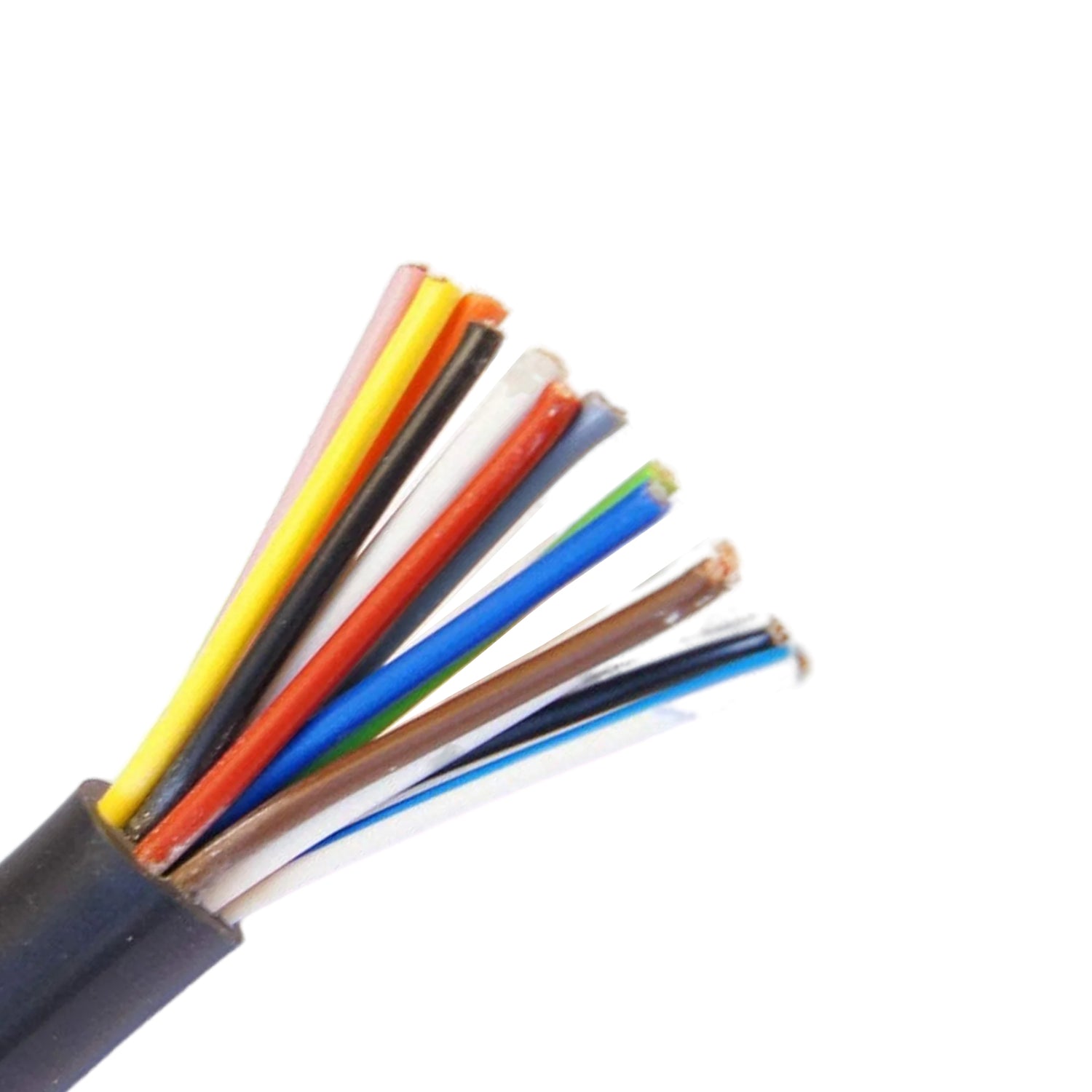

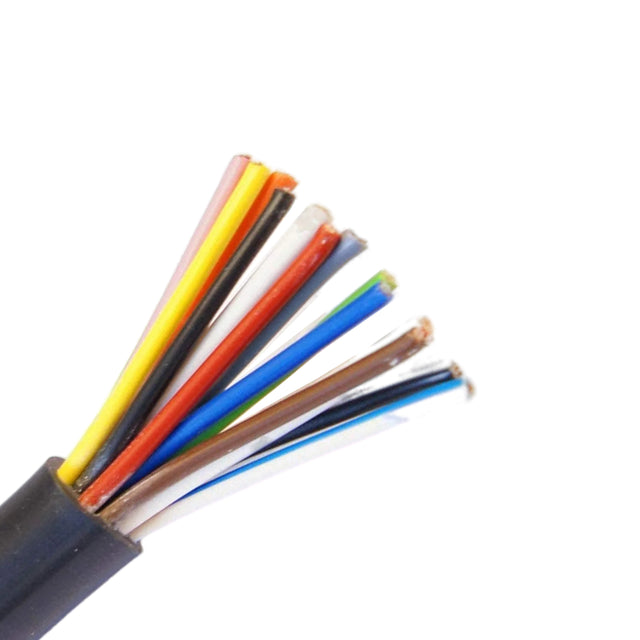

13 Core Multi Core 12V 24V Cable Wire Trailer Caravan Automotive & Marine - from 1 to 20metres
Thin Wall low voltage multicore wiring cables suitable for use in the automotive, marine and allied industries. Resistant to petrol, diesel, lubricating oils and diluted acids. This is proper automotive extension cable.
Reduced "Thin" Insulation extra low voltage wiring cable for Automotive and Marine applications.

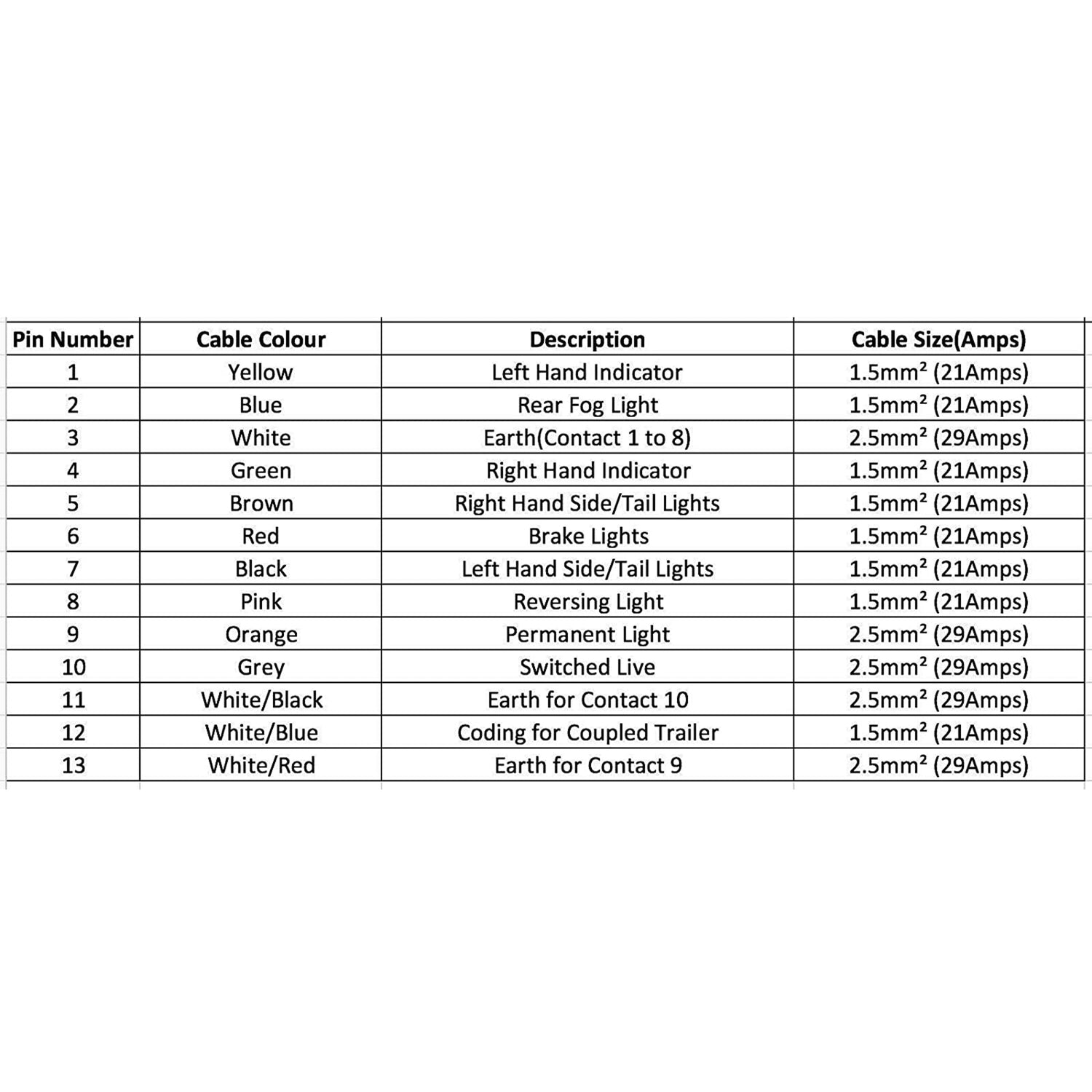

This cable is the recognised standard of cable for the new 13 pin sockets. Cable construction; 8 x 1.5(8 x 30/0.25) - 21Amps; 5 x 2.5(5 x 50/0.25) - 29Amps
Specification:
Cable construction
8 x 1.5*** (8 x 30/0.25) - 21Amps
5 x 2.5*** (5 x 50/0.25) - 29Amps
***Please note that the sizes quoted (denoted clearly by ² symbol) refer to the area of copper and not the diameter.
Insulation Properties:
Calcium Zinc based insulation compound to ISO6722-2011 Class B
Thermal Stability 200 mins @ 200°C
Sheath Properties
Easy tear PVC sheathing to BS7655 Type 6
COPPER STRAND PROPERTIES
WHAT IS INCLUDED:
13 Core Cable in the lenght you choose.
