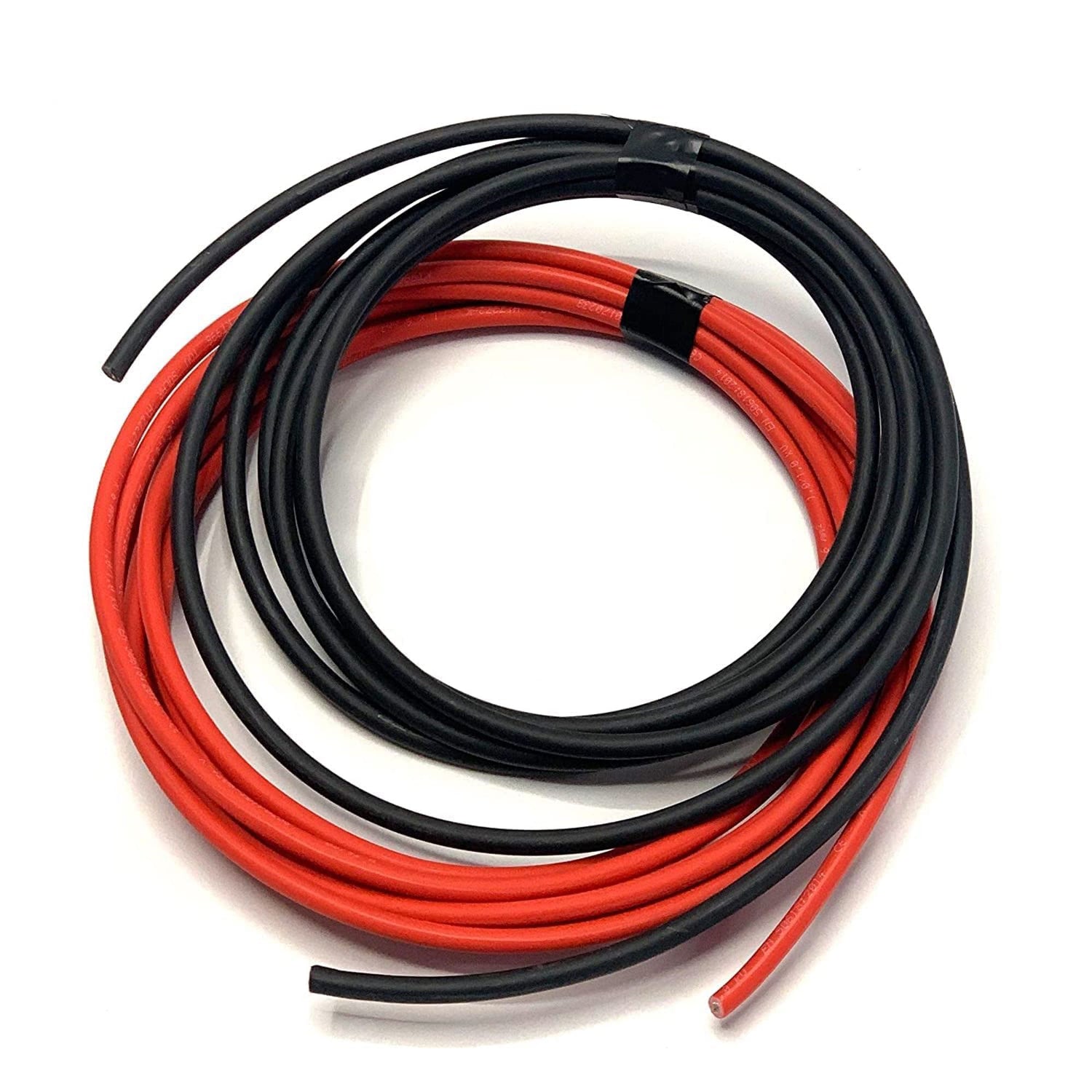

Name: Solar Panel PV Cable Black & Red 4mm² - 1800V Double Insulated Quality Wire DC Rated
Brand: MKGT
SKU: Solar/4/R/5
Price: 13.97 GBP
Availability: InStock

£13.97

Tax included. Shipping calculated at checkout.

Free shipping over £100

In stock, ready to ship
Inventory on the way

Our cable range of TUV-Rheinland approved solar cable is used extensively in photovoltaic systems for connection to solar modules and inverters. Our cable range has been specifically designed for use in all photovoltaic systems, and includes 4.00mm2, conductor options. All of our cables are sheathed in LSNH and all are UV-stable

Solar Cable
Range of solar cable, 4mm, photovoltaic cable, solar panel cable, TUV solar cable, rheinland approved cable, solar panel cables, solar cables

Application
Solar cables are suitable for use in all photovoltaic systems for cabling of solar modules and also for connection to the AC/DC inverter.

Description

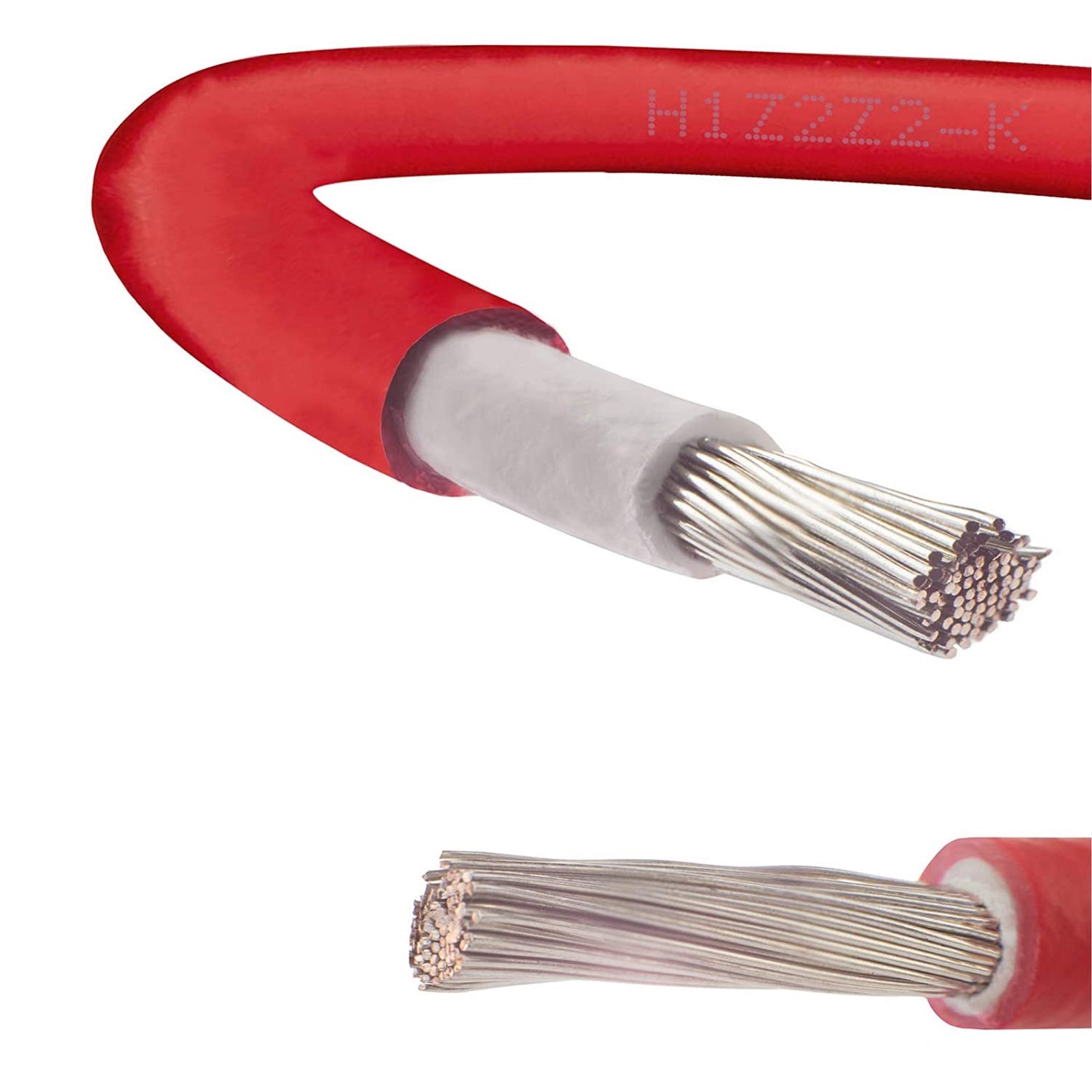

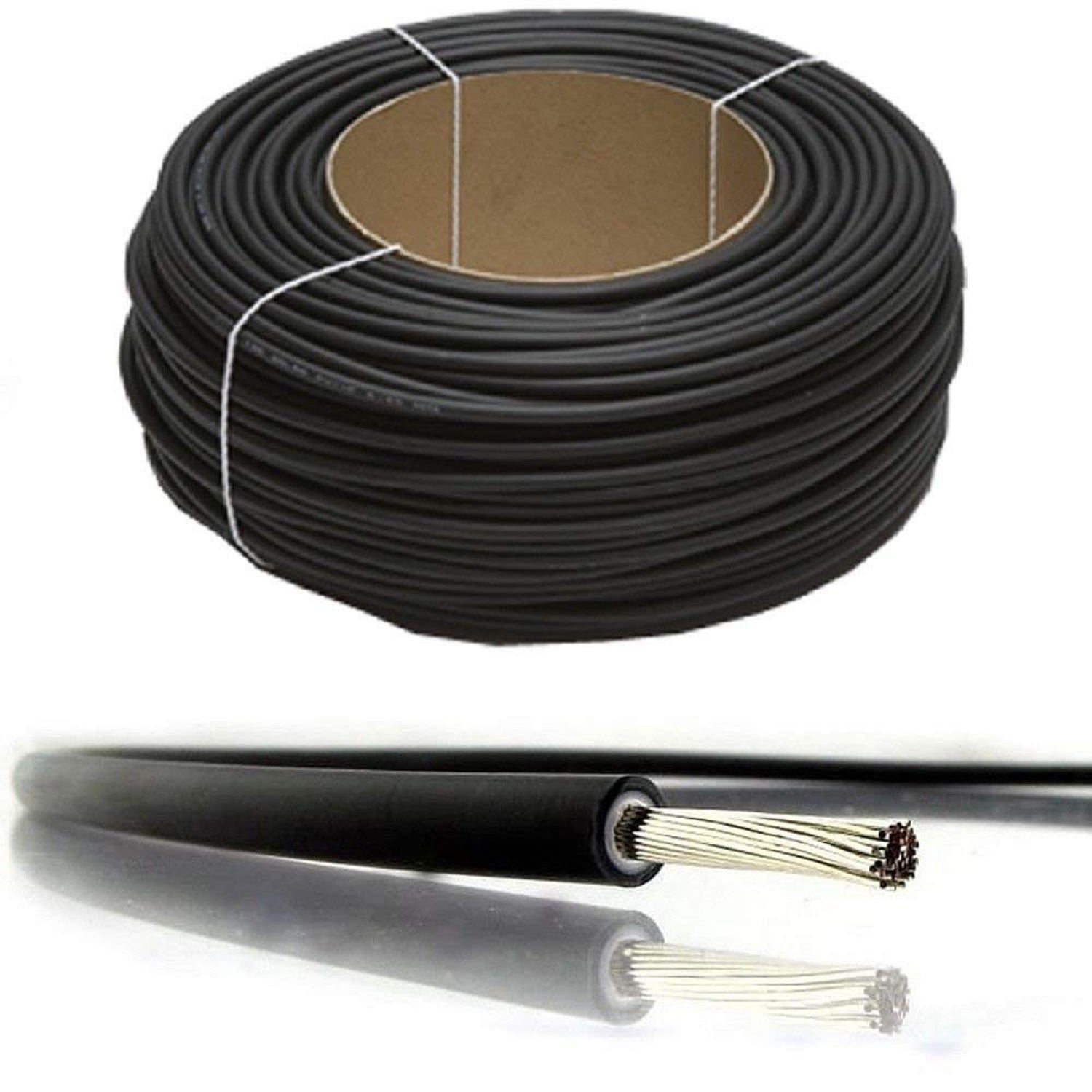

Our cables are made from flexible tinned copper with a halogen-free copolymer insulation and a UV stable halogen-free copolymer sheath. Those solar cables are TUV-Rheinland approved.

Mechanical Characteristics
Construction:
Inner Conductor: Flexible Tinned Copper Wire
Dielectric: LSZH Halogen Free Copolymer
LSZH Halogen Free Copolymer
(UV Resistant)
Colour: Black or Red
Insulation Diameter: See Below
Storage/Operating Temperature: -40°C to +90°C*
Minimum Installation Temperature: -5°C

Electrical Characteristics
D.C Resistance Conductor 2.50mm2 ≤ 7.98 Ω/km
4.00mm2 ≤ 4.95 Ω/km
6.00mm2 ≤ 3.30 Ω/km
10.00mm2 ≤ 1.91 Ω/km
Working Voltage: 0.6/1.0kV AC (0.8/1.5kV DC)
Max Voltage: 1.2kV AC (1.8kV DC)

FREE next day delivery for order above £100, otherwise £7.99 for next day service.

We process all incoming orders at the same working day as long you complete checkout by 2pm.
