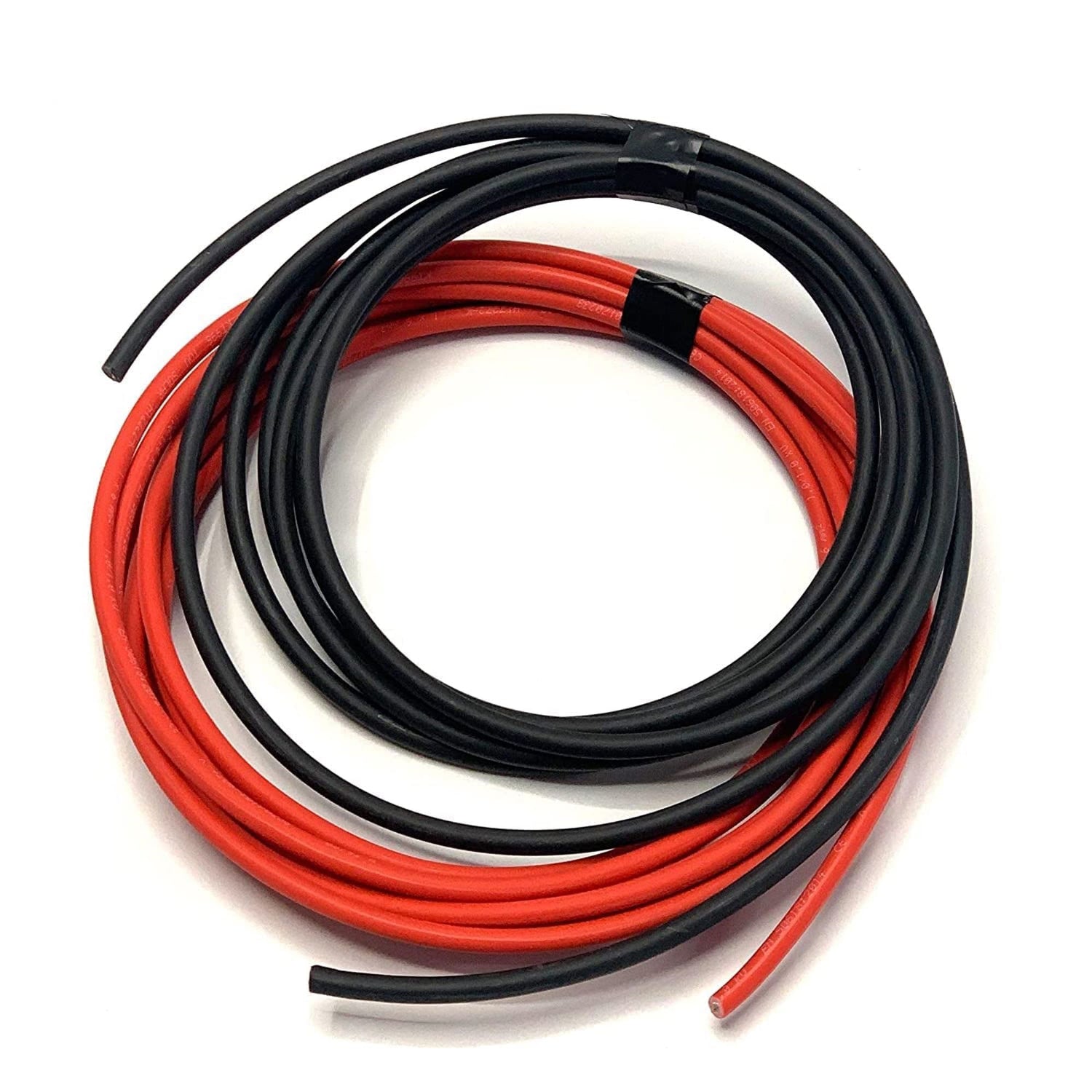

Solar Panel PV Cable Black & Red 6mm² - 1800V Double Insulated Quality Wire DC Rated
No reviews
- Free shipping over £100
- In stock, ready to ship
- Inventory on the way
Our cable range of TUV-Rheinland approved solar cable is used extensively in photovoltaic systems for connection to solar modules and inverters. Our cable range has been specifically designed for use in all photovoltaic systems, and includes 6.00mm2, conductor options. All of our cables are sheathed in LSNH and all are UV-stable
Solar Cable
Range of solar cable, 6mm, photovoltaic cable, solar panel cable, TUV solar cable, rheinland approved cable, solar panel cables, solar cables
Application
Solar cables are suitable for use in all photovoltaic systems for cabling of solar modules and also for connection to the AC/DC inverter.
Description

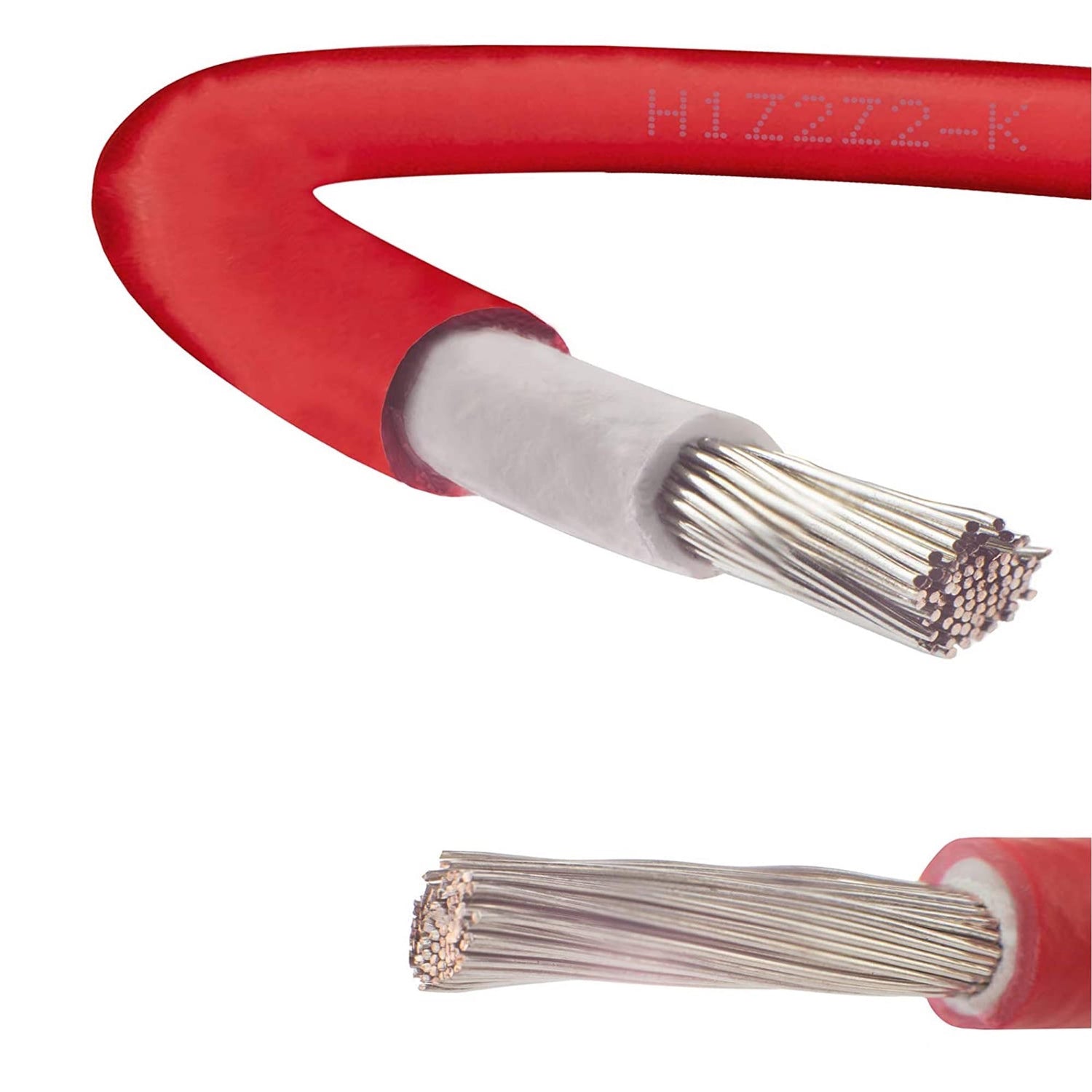

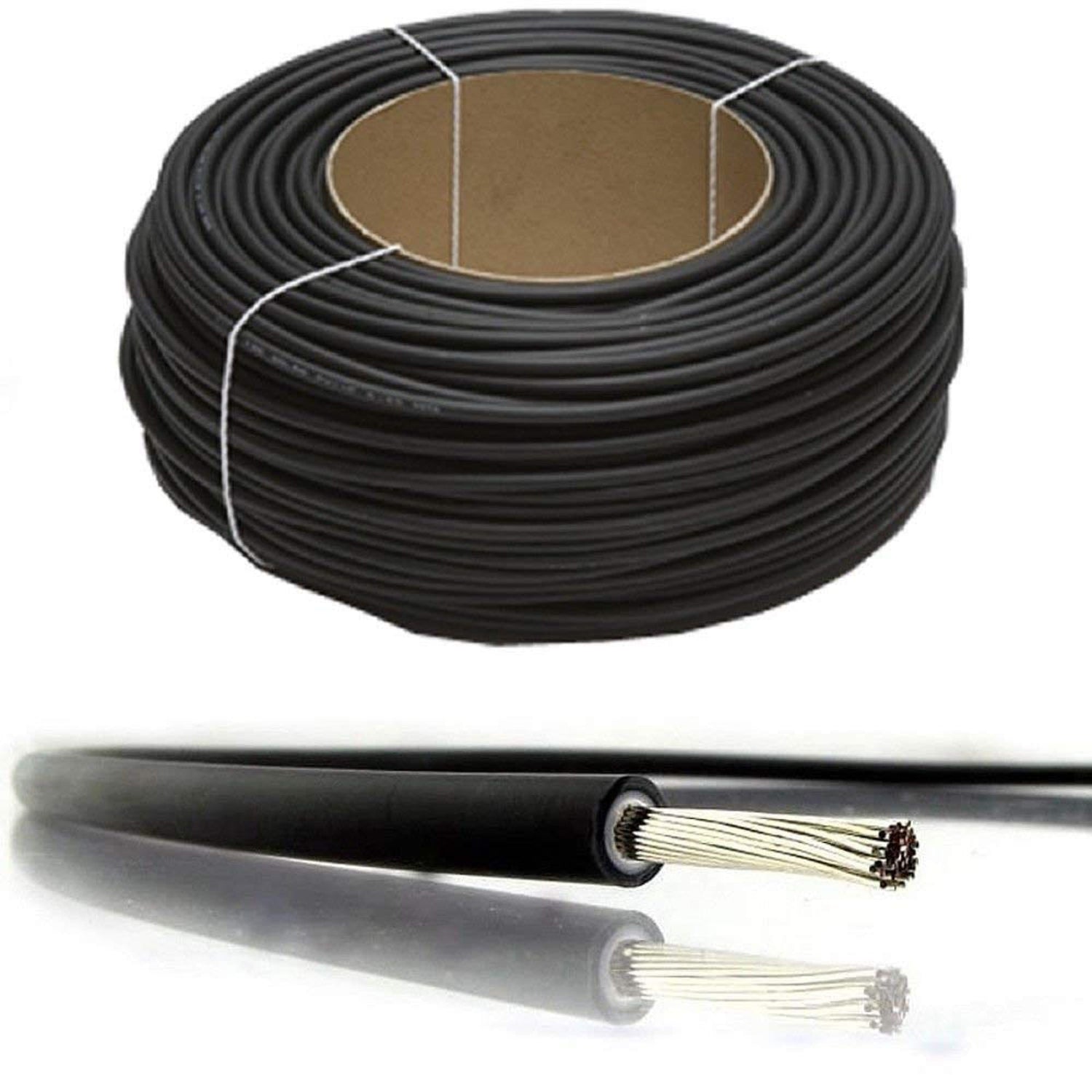

Our cables are made from flexible tinned copper with a halogen-free copolymer insulation and a UV stable halogen-free copolymer sheath. Those solar cables are TUV-Rheinland approved.
Mechanical Characteristics
Construction:
Inner Conductor: Flexible Tinned Copper Wire
Dielectric: LSZH Halogen Free Copolymer
LSZH Halogen Free Copolymer
(UV Resistant)
Colour: Black or Red
Insulation Diameter: See Below
Storage/Operating Temperature: -40°C to +90°C*
Minimum Installation Temperature: -5°C
Electrical Characteristics
D.C Resistance Conductor 2.50mm2 ≤ 7.98 Ω/km
4.00mm2 ≤ 4.95 Ω/km
6.00mm2 ≤ 3.30 Ω/km
10.00mm2 ≤ 1.91 Ω/km
Working Voltage: 0.6/1.0kV AC (0.8/1.5kV DC)
Max Voltage: 1.2kV AC (1.8kV DC)
Solar Cable
Range of solar cable, 6mm, photovoltaic cable, solar panel cable, TUV solar cable, rheinland approved cable, solar panel cables, solar cables
Application
Solar cables are suitable for use in all photovoltaic systems for cabling of solar modules and also for connection to the AC/DC inverter.
Description
Our cables are made from flexible tinned copper with a halogen-free copolymer insulation and a UV stable halogen-free copolymer sheath. Those solar cables are TUV-Rheinland approved.
Mechanical Characteristics
Construction:
Inner Conductor: Flexible Tinned Copper Wire
Dielectric: LSZH Halogen Free Copolymer
LSZH Halogen Free Copolymer
(UV Resistant)
Colour: Black or Red
Insulation Diameter: See Below
Storage/Operating Temperature: -40°C to +90°C*
Minimum Installation Temperature: -5°C
Electrical Characteristics
D.C Resistance Conductor 2.50mm2 ≤ 7.98 Ω/km
4.00mm2 ≤ 4.95 Ω/km
6.00mm2 ≤ 3.30 Ω/km
10.00mm2 ≤ 1.91 Ω/km
Working Voltage: 0.6/1.0kV AC (0.8/1.5kV DC)
Max Voltage: 1.2kV AC (1.8kV DC)
